TV Hydraulic Swing Arm Bracket | 23"-55"
TV
Hydraulic Swing Arm Bracket | 23"-55"
Description
This premium hydraulic mount is the ultimate swing arm bracket with its gas spring structure. Suitable for curved and flat panel televisions from 23'' - 55'', this bracket has the flexibility to move in all directions for the perfect positioning.
Supporting up to 30kg, the ergonomic aluminium arm has hidden cable management beneath the arm covers for a decorative clean finish. Ideal for both home and commercial use.
Features
- Suitable for 23", 26", 28", 32", 40", 42", 43", 47" & 55" LCD/LED
- VESA compliant: 75x75, 100x100, 200x100, 200x200, 300x300, 400x200, 400x300, 400x400
- Weight of Bracket: 4.6kg

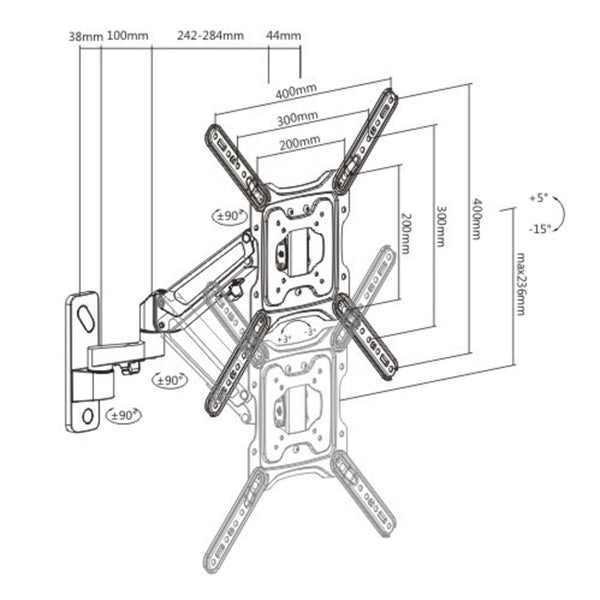

Specifications
- Max VESA
- 400 x 400
- Screen Size
- 23" - 55"
- Mounting Pattern
- Standard VESA
- Max. Hole Pattern
- 400 x 400
- Tilt
- +5° ~ -15°
- Swivel
- +90° ~ -90°
- Level Adjustment
- +3° ~ -3°
- Profile
- 61 - 565mm
- Material
- Aluminum, Steel, Plastic
- Available Colour(s)
- Black
- Installation
- Solid wall, Single Stud
- Rated Load
- 30kg (66lbs)
- Strength Tested
- 3 times approved
- Panel Separated
- Yes
- Dimensions
- 565 x 450 x 450mm
- Manufacturer Code
- P-SWB442S-1
- Barcode (EAN)
- 5055189013834
Downloads
Manual
